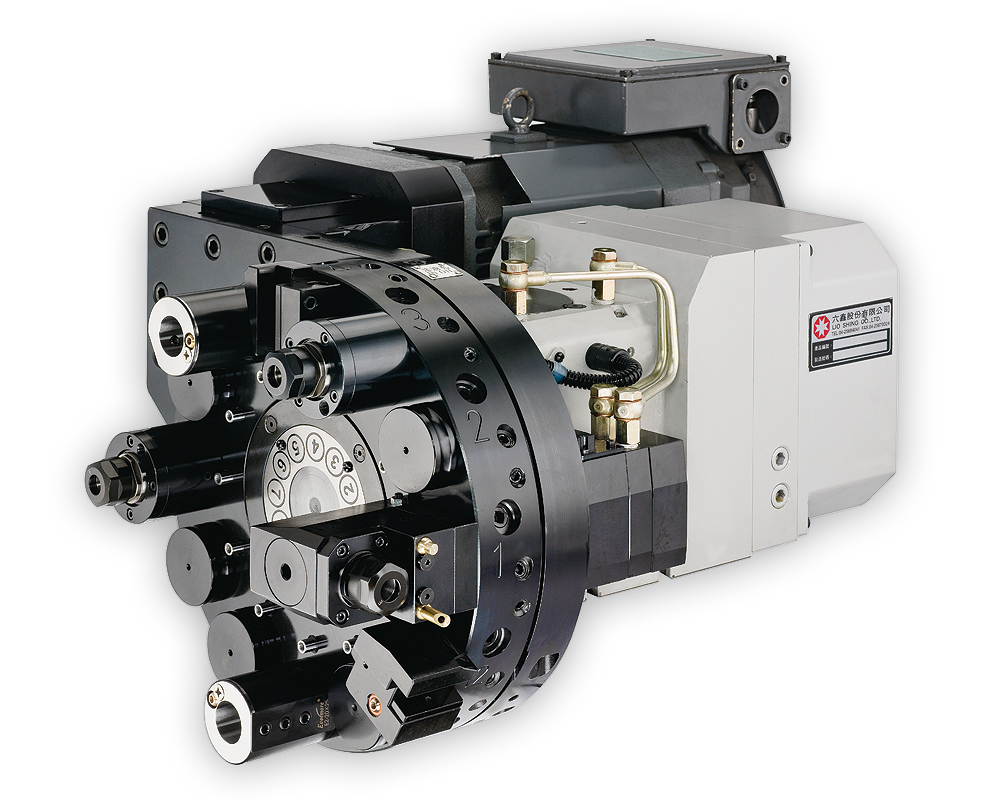

Powered Turret

Powered Turret Features:

  1. Turret rotation and indexing is driven by a special servo motor.
  2. Tool holders are driven by a spindle motor that features high torque output and no noise.
  3. Fast tool change without change error.
  4. Powered tool holders meet DIN69880 and DIN5480 standards.
  5. Repeatability accuracy reaches 0.003 mm.
  6. Three-piece type curvic clutch ensures high positioning accuracy.



VDI Ø20, 12 tools, tools center Dia. Ø240 mm, Turret center height 63 mm



SERVO TURRET:
Mitsubishi Servomotor: HG-KR43JK ; Gear ratio 1/48
Hydraulic power source: P = 30 kg / cm²

Hydraulic cylinder clamping force 1,640 kg



POWERED TOOL HOLDER:
Tool shank specifications: DIN5480 W11 x 0.8 and zero detent system
Max. tool speed: 5,000 rpm.
Spindle motor specification:
Mitsubishi SJ-PF2.2-01 1.5 / 2.2 KW
Fanuc α1.5 1.1 / 2.2 KW
Tool and motor transmission gear ratio 1 : 1



Specifications And Accessories

  • Specifications
  • Specifications of Power Tool Holder
  • Dimensions
MODEL   LS-120SP
Center height mm 63
Number of tools N 8T / 12T
Rotating time (tool-to-tool) sec 0.42 / 0.4
Rotating time (including locking) sec 0.52 / 0.5
Total indexing time for 180° sec 0.83
Total indexing time for 180° (including locking) sec 0.93
Gear speed ratio   48:1
Curvic couplings type   3 Piece type
Turret servo motor   HG-KR43JK
MR-J4-40A-RJ
Hydraulic working pressure Kgf/cm² (25-30)30
Flow rate L/min. 20
Thrusting force of hyd. cyl. Kgf 1,640
Accuracy of repeatability mm 0.003
N.W (Without spindle motor) Kg 135
Tool servo motor   MITSUBISHI - SJ-PF2.2-01
FANUC - α1.5
